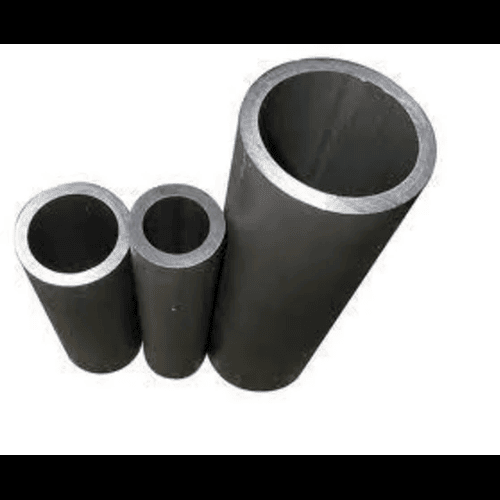

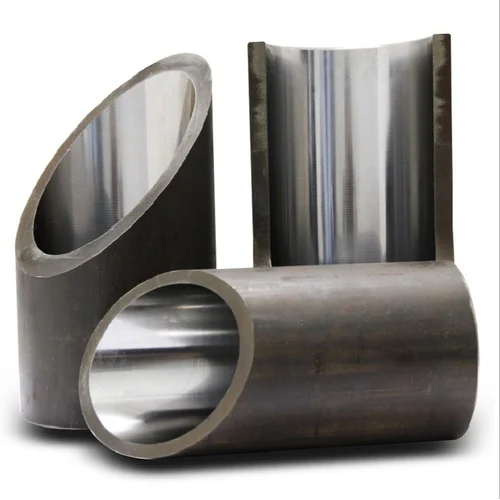

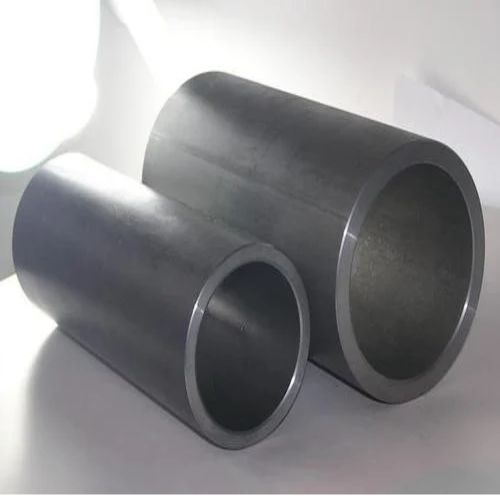

Hydraulic Brake Cylinder Honed and Burnished Tubes

Product Description

Product Range :-

• Available Internal Dia (Bore ID): 25mm to 300 mm (Regular) and above size as per customer requirements.
• Outer Dia available: as per customers required load and pressure.
• Length Available: 3 meter to 6 meter (Regular) and above as per customer demand
• Supplying conditions: Full length and cut to length as per customer requirement.

Technical Parameters :

• Material : ST52 in BK+S Condition and as per Customer demand.
• Tolerance: As per ISO H8/H9
• Surface Roughness: Ra0.3micron Maximum
• T.S. :>580 N/mm2
• Y.S.: > 520N/mm2
• Elongation: >16%
• Straightness: 0.1mm per meter
• Packing Condition: Bore covered by cap and plastic and Transportation purpose M.S.plate welded in bore both sides
